CV Cerwin Vega COMP00008 OEM Diaphragm # DIAP00005

$64.95

Fits COMP00008 driver, INT-152v2, INT-252v2 and more.
8 ohms

Categories: ,
Description
Specifications
Description

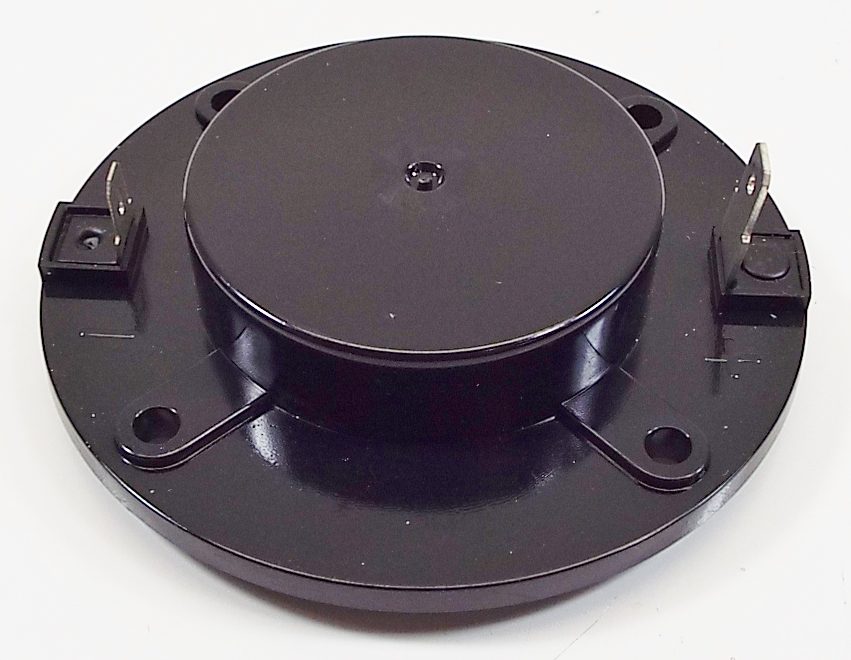

Cerwin Vega COMP00008 OEM Diaphragm

CV diaphragm part # is DIAP00005.

This is an OEM diaphragm that is made by Cerwin Vega for the COMP00008 driver.

Here is the list of some of the model #’s that it will fit:
– COMP00008 driver, INT-152v2, INT-252v2 and more.

Specs:
Overall Diaphragm Diameter: 3.25″ (82.55mm)
Voice Coil Diameter: 1.35″ (34.4mm)
Nominal Impedance: 8 ohms
DCR: 6.3 ohms

No soldering needed and the diaphragm is self centering for an easy install. Any questions, just let us know.

Specifications
Weight .5 lbs
