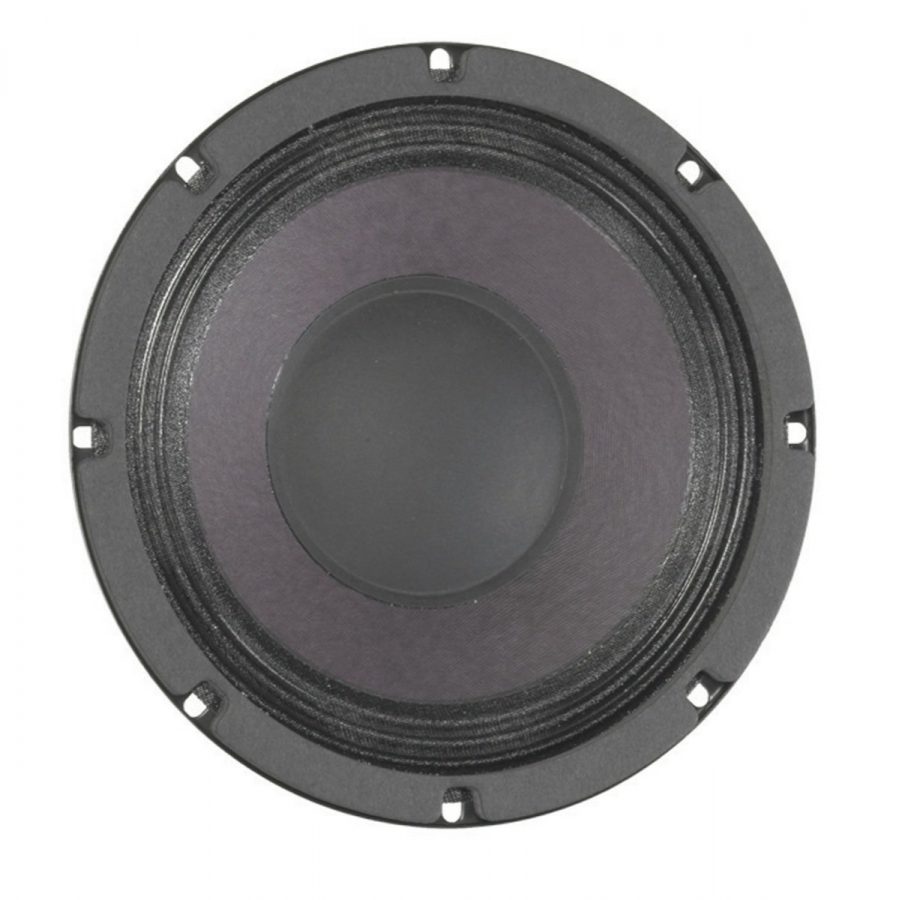

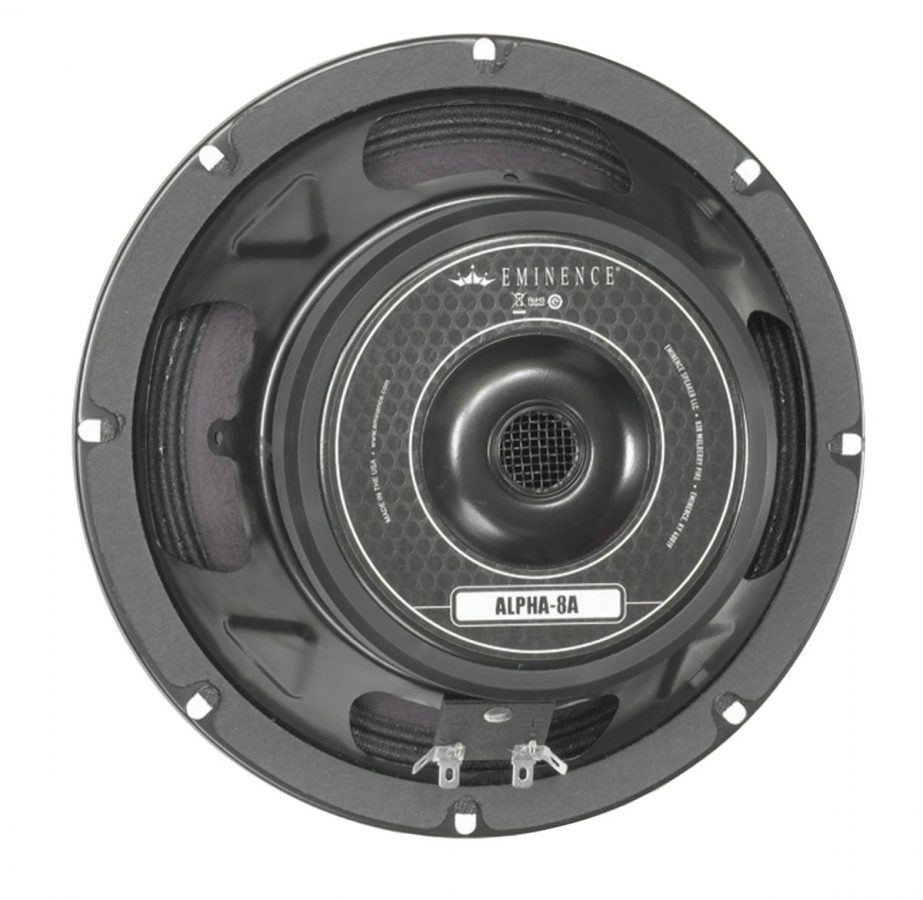

ALPHA-8A
Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure.
Click Here to Download 8 ohm PDF Spec Sheet
Click Here to Download 8 ohm PDF Cabinet Design
| Specification | |
| Nominal Basket Diameter | 8″, 203 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 250 W |
| Watts | 125 W |
| Resonance | 73 Hz |
| Usable Frequency Range | 58 Hz – 5 kHz |
| Sensitivity* | 94 dB |
| Magnet Weight | 20 oz. |
| Gap Height | 0.25″, 6.4 mm |
| Voice Coil Diameter | 1.5″, 38 mm |
Thiele & Small Parameters |
|
| Resonant Frequency (fs) | 73 Hz |
| DC Resistance (Re) | 5.3 Ω |
| Coil Inductance (Le) | 0.44m H |
| Mechanical Q (Qms) | 4.6 |
| Electromagnetic Q (Qes) | 0.68 |
| Total Q (Qts) | 0.59 |
| Compliance Equivalent Volume (Vas) | 17.7 liters / 0.63 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 67 cc |
| Mechanical Compliance of Suspension (Cms) | 0.28 mm/N |
| BL Product (BL) | 7.8 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 17 grams |
| Efficiency Bandwidth Product (EBP) | 107 |
| Maximum Linear Excursion (Xmax) | 3.2 mm |
| Surface Area of Cone (Sd) | 210 cm2 |
| Maximum Mechanical Limit (Xlim) | 7.1 mm |
Mounting Information |
|
| Recommended Enclosure Volume | |
| Sealed | 5-7 liters / 0.18-0.25 cu.ft. |
| Vented | 16.7-25.5 liters / 0.59-0.9 cu.ft. |
| Driver Volume Displaced | 0.02 cu.ft. / 0.58 liters |
| Overall Diameter | 8.24″, 209.3 mm |
| Baffle Hole Diameter | 7.13″, 181.1 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.22″, 5.6mm |
| Mounting Holes B.C.D. | 7.75″, 196.9mm |
| Depth | 3.25″, 82.6 mm |
| Net Weight | 4.3 lbs, 1.95 kg |
| Shipping Weight | 5.1 lbs, 2.31 kgs |
Materials of Construction |
|
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
