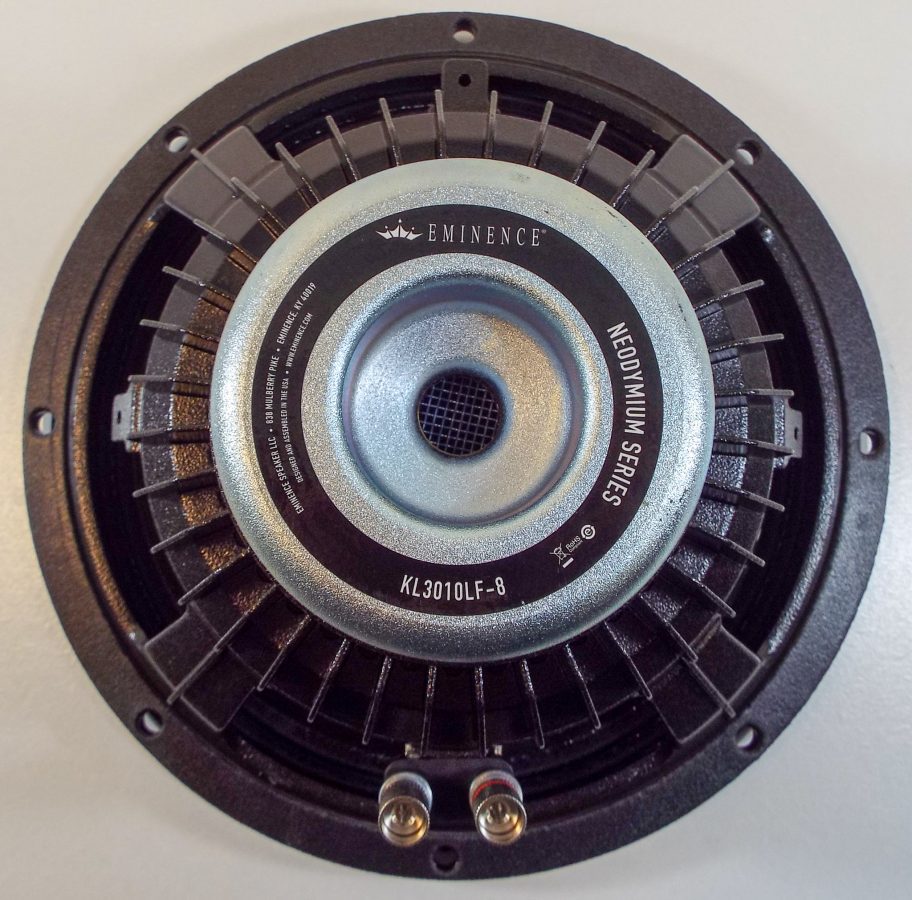

Eminence KL3010LF-8: 10 inch Neodymium Woofer
High power subwoofer recommended for vented and horn loaded enclosures.
Click Here to Download 8 ohm PDF Spec Sheet
Click Here to Download 8 ohm PDF Cabinet Design
| SPECIFICATION | |
| Nominal Basket Diameter | 10″, 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 900 W |
| Watts | 450 W |
| Resonance | 45 Hz |
| Usable Frequency Range | 42 Hz – 1.6 kHz |
| Sensitivity* | 92 dB |
| Magnet Weight | 11 oz. |
| Gap Height | 0.365″, 9.3 mm |
| Voice Coil Diameter | 3″, 76 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 45 Hz |
| DC Resistance (Re) | 7.03 Ω |
| Coil Inductance (Le) | 0.87m H |
| Mechanical Q (Qms) | 0.95 |
| Electromagnetic Q (Qes) | 0.33 |
| Total Q (Qts) | 0.31 |
| Compliance Equivalent Volume (Vas) | 47.33 liters / 1.67 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 321.1 cc |
| Mechanical Compliance of Suspension (Cms) | 0.24 mm/N |
| BL Product (BL) | 17.98 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 53 grams |
| Efficiency Bandwidth Product (EBP) | 137 |
| Maximum Linear Excursion (Xmax) | 8.52 mm |
| Surface Area of Cone (Sd) | 376.9 cm2 |
| Maximum Mechanical Limit (Xlim) | 15.7 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | Acceptable |
| Driver Volume Displaced | 0.037 cu.ft. / 1.06 liters |
| Overall Diameter | 10.25″, 260.4 mm |
| Baffle Hole Diameter | 9.12″, 231.7 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.29″, 7.2mm |
| Mounting Holes B.C.D. | 9.73″, 247.1mm |
| Depth | 4.88″, 123.8 mm |
| Net Weight | 7.1 lbs, 3.22 kg |
| Shipping Weight | 8.9 lbs, 4.04 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Neodymium magnet |
| Core Details | Vented core |
| Basket Materials | Die-cast aluminum basker |
| Cone Composition | Treated paper cone |
| Cone Edge Composition | Sealed cloth edge |
| Dust Cap Composition | Treated paper dust cap |
