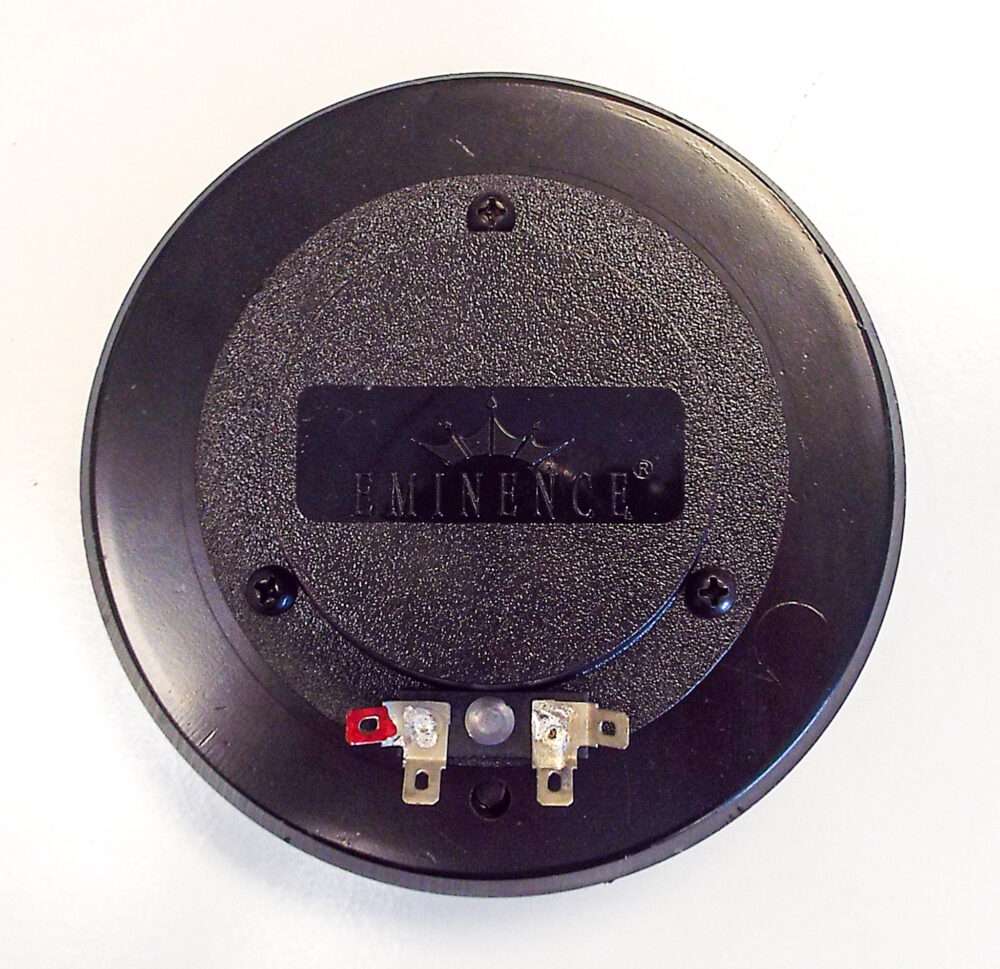

PSD:2002 Bolt-on Driver
Available in 8 or 16 ohms
Click Here to Download PDF Spec Sheet
SPECIFICATION | |
Throat Size | 1″, 25.4mm |
Nominal Impedance* | 8 or 16Ω |
Minimum Impedance | 7.6 ohm @ 3.7 kHz |
Power Rating** | 80 W (AES) |
Resonance | 0.54kHz |
Usable Frequency Range | 1200Hz-20kHz |
Recommended Crossover | 1.2 kHz / 12 dBkHz |
Sensitivity*** | 106.1 |
Magnet Material | Ferrite |
Magnet Weight | 34oz, 0.96kg |
Voice Coil Diameter | 2″ / 50.8mm |
Voice Coil Former | Polyimide |
Diaphragm Material | Titanium |
DC Resistance (Re) | 6.1 or 11.9Ω |

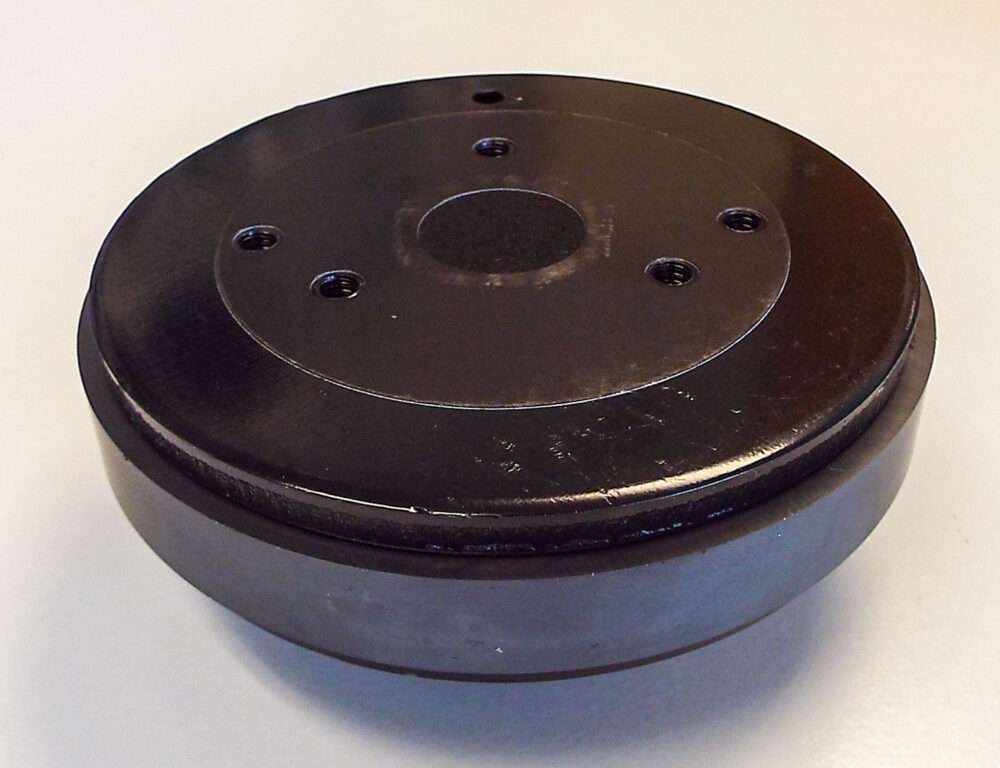

MOUNTING INFORMATION | |
Overall Diameter | 5.25″, 133.4mm |
Driver Volume Displaced | 0.01 cu.ft., 0.5 liters |
Depth | 2.2″, 55.9mm |
Weight | 4.7 lbs, 2.1 kg |
Mounting Thread | N/A |
Mounting Holes Diameter | 2X 1/4-20 or 3x M6 |
Mounting Holes B.C.D. | 3 in. 76.2 mm or 2.25 in. 57 |
*Replacement diaphragms available.
