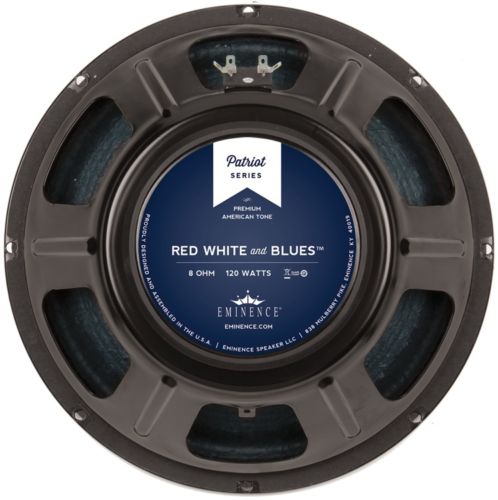

Eminence RED WHITE AND BLUES: 12 inch Guitar Speaker
Click Here to Download 8 ohm PDF Spec Sheet
The Eminence Red White and Blues guitar speaker is the natural upgrade for the classic American amp. A versatile guitar speaker, great for southern rock or blues. Nice tight low-end, smooth midrange and top end sparkle. American cousin to The Governor.
Specification | |
Nominal Basket Diameter | 12″, 305 mm |
Nominal Impedance* | 8 Ω |
Power Rating* | |
Program Power | N/A |
Watts | 120 W |
Resonance | 110 Hz |
Usable Frequency Range | 80 Hz – 4.3 kHz |
Sensitivity* | 101 dB |
Magnet Weight | 38 oz. |
Gap Height | 0.31″, 7.9 mm |
Voice Coil Diameter | 1.75″, 44 mm |
Thiele & Small Parameters | |
Resonant Frequency (fs) | 110 Hz |
DC Resistance (Re) | 6.42 Ω |
Coil Inductance (Le) | 0.43m H |
Mechanical Q (Qms) | 7.19 |
Electromagnetic Q (Qes) | 0.89 |
Total Q (Qts) | 0.79 |
Compliance Equivalent Volume (Vas) | 30.8 liters / 1.09 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 44.7 cc |
Mechanical Compliance of Suspension (Cms) | 0.07 mm/N |
BL Product (BL) | 12.3 T-M |
Diaphragm Mass Inc. Airload (MMs) | 30 grams |
Efficiency Bandwidth Product (EBP) | 124 |
Maximum Linear Excursion (Xmax) | 0.8 mm |
Surface Area of Cone (Sd) | 532.4 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
Mounting Information | |
Recommended Enclosure Volume | |
Sealed | Acceptable |
Vented | Acceptable |
Driver Volume Displaced | 0.071 cu.ft. / 2 liters |
Overall Diameter | 12.03″, 305.6 mm |
Baffle Hole Diameter | 11.07″, 281.2 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.25″, 6.4mm |
Mounting Holes B.C.D. | 11.59″, 294.4mm |
Depth | 5.1″, 129.5 mm |
Net Weight | 8.2 lbs, 3.72 kg |
Shipping Weight | 10.1 lbs, 4.58 kgs |
Materials of Construction | |
Coil Construction | Copper voice coil |
Coil Former | Polyimide former |
Magnet Composition | Ferrite magnet |
Core Details | Non-vented core |
Basket Materials | Pressed steel basket |
Cone Composition | Paper cone |
Cone Edge Composition | Paper cone edge |
Dust Cap Composition | Zurette dust cap |
