Epicure Model 2 Complete Refoam Kit
Model #’s include:
– Model 2.

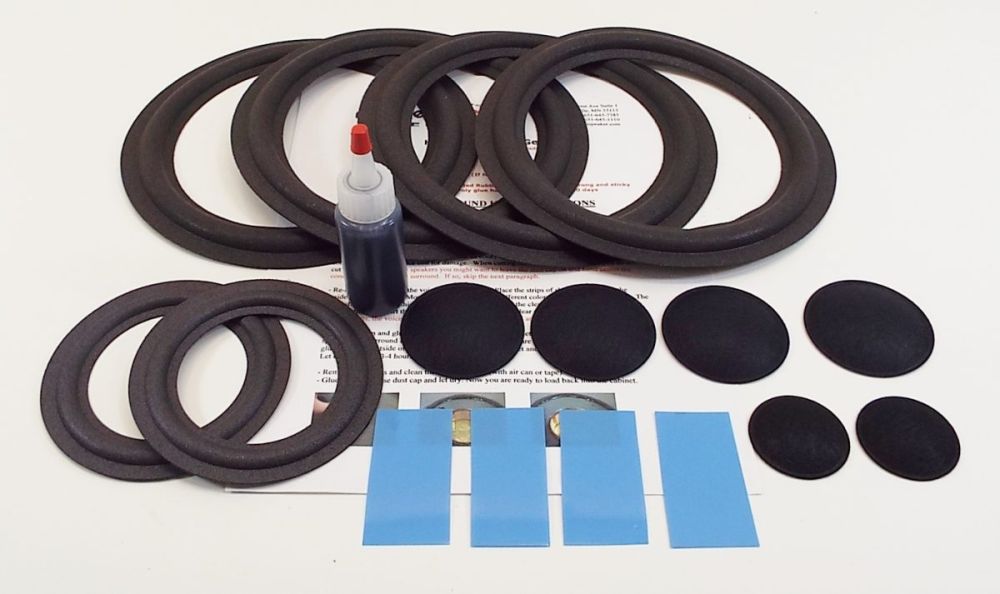

Each Refoam Kit includes all the materials needed to repair four (4) woofers and two (2) mids:
– Refoaming Instructions
– 4 Foam Surrounds (F8-2)
– 2 Foam Surrounds (F4-7)
– Shims For Centering the 1″ Voice Coils
– Four 2.25″ Felt Dust Caps and Two 1.75″ Felt Dust Caps
– 1 Bottle of Specially Formulated Foam Surround Adhesive (Strong and sticky to bond on poly cones)
*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing.
8″ Woofer
A – Outside diameter of the surround = 7.75″
B – Roll ends = 6.938″
C – Roll starts / O.D. of the cone = 6″
D – Inside diameter of the surround = 5.5″
4.5″ Midrange
A – Outside diameter of the surround = 4.31″
B – Roll ends = 3.75″
C – Roll starts / O.D. of the cone = 3.06″
D – Inside diameter of the surround = 2.75″
