EV ND2 8 ohm Aftermarket Diaphragm

$59.95

Fits in ND2-8 and ND2S-8 Drivers.
8 ohms

Description
Specifications
Description

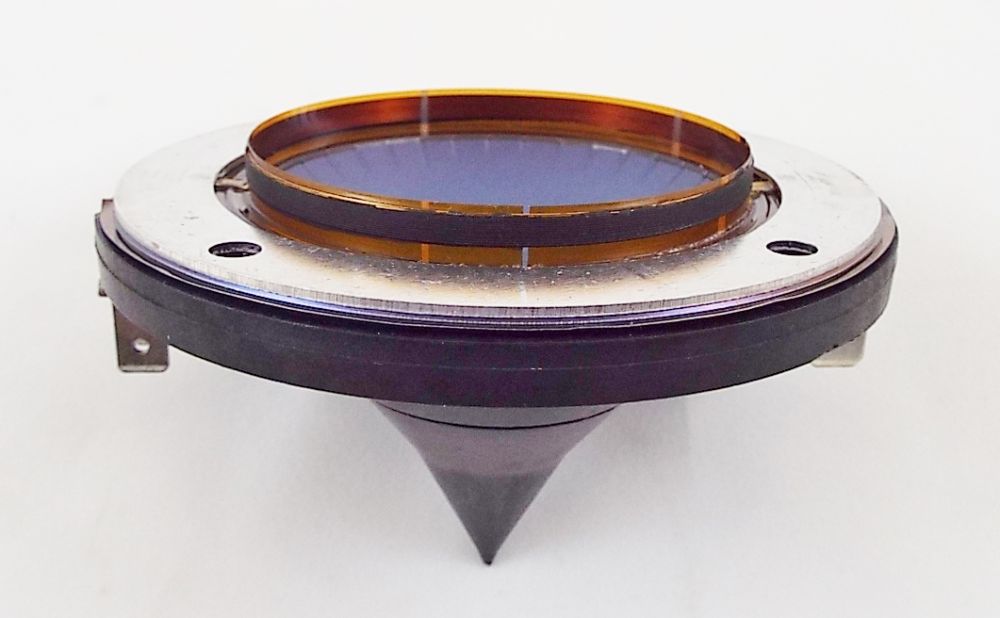

Electro Voice ND2 8 ohm Aftermarket Diaphragm

This is a high quality aftermarket diaphragm that fits many Electro Voice models. Price is for (1) one diaphragm. If you need more than one, just change the quantity.

Specs:
Overall Diameter: 3.125″ ( 79.38mm)
Voice Coil Diameter: 2″ ( 50.80mm)
Diaphragm Material: Titanium
Nominal Impedance: 8 ohms
DCR: 5.0 ohms Just like the original!

Here is a list of the driver part #’s:
– ND2-8 and ND2S-8

Here is the list of some of the cabinet model #’s:
– EVF Series: EVF-1122S/64, EVF-1122S/94, EVF1122S/96, EVF-1122S/99, EVF-1122S/126, EVF-1152S/43, EVF-1152S/64, EVF-1152S/66, EVF-1152S/96 EVH Series: EVH-1152S/64, EVF-1152S/66, EVH-1152S/94, EVF-1152S/96, EVH-1152S/99

Other Models: TX 2152, XLD 281, XLD 291, XLE 181, XLE 191, ZX3, ZX5 and more

We are an EV factory authorized service center and use this part frequently. No soldering needed and the diaphragm is self centering for an easy install. Any questions, just let us know.

Specifications
Weight 0.5 lbs
