Infinity Crescendo CS 3007 Woofer & Midrange Speaker Refoam Kit
Model #’s include:
– Crescendo CS 3007 and more.

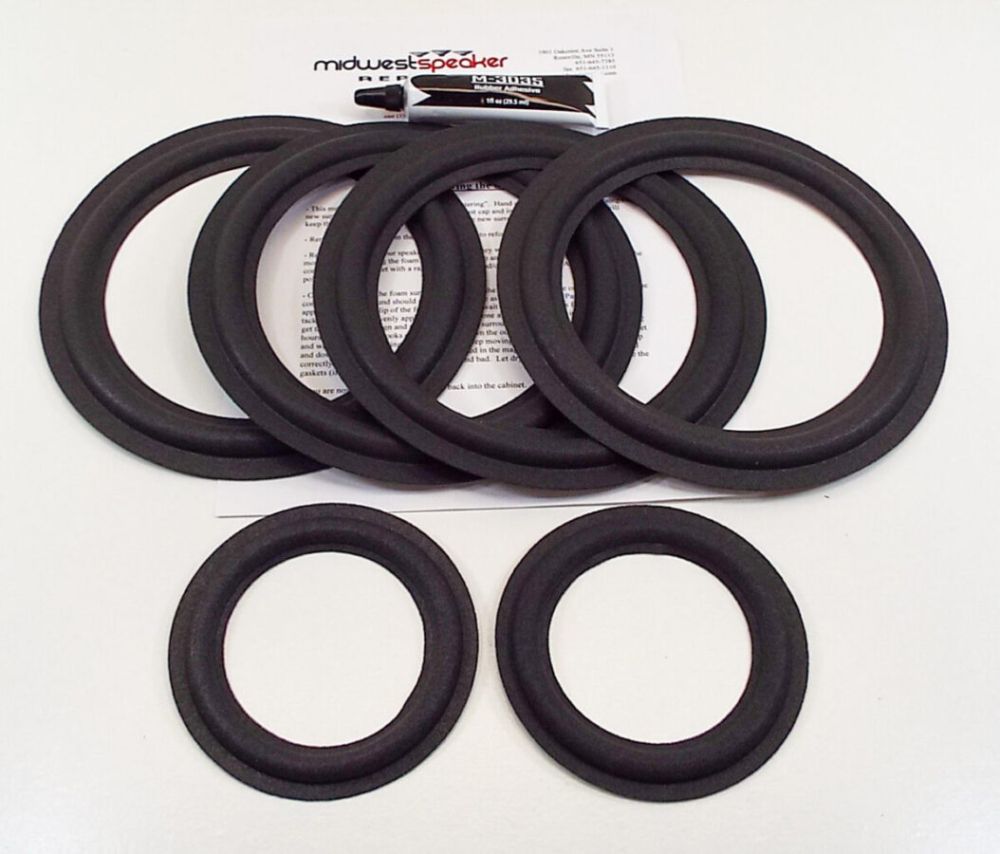

Each Refoam Kit includes all the materials needed to repair four (4) woofers and two (2) mids:
– Refoaming Instructions
– Four 8″ Foam Surrounds
– Two 5″ Foam Surrounds
– 1 Tube of Specially Formulated Foam Surround Adhesive (strong and sticky to bond on the graphite cones)
*These speakers are easy to refoam and to center by hand.
8″ Woofer
A – Outside diameter of the surround = 7.75″
B – Roll ends = 6.938″
C – Roll starts / O.D. of the cone = 6″
D – Inside diameter of the surround = 5.5″
5″ Mid
A – Outside diameter of the surround = 4.5″
B – Roll ends = 3.94″
C – Roll starts / O.D. of the cone = 3.19″
D – Inside diameter of the surround = 2.94″
