Infinity Crescendo CS 3008 Complete Refoam Kit
This is the correct kit that fits on the Crescendo CS 3008 woofers, mid-bass and midranges.

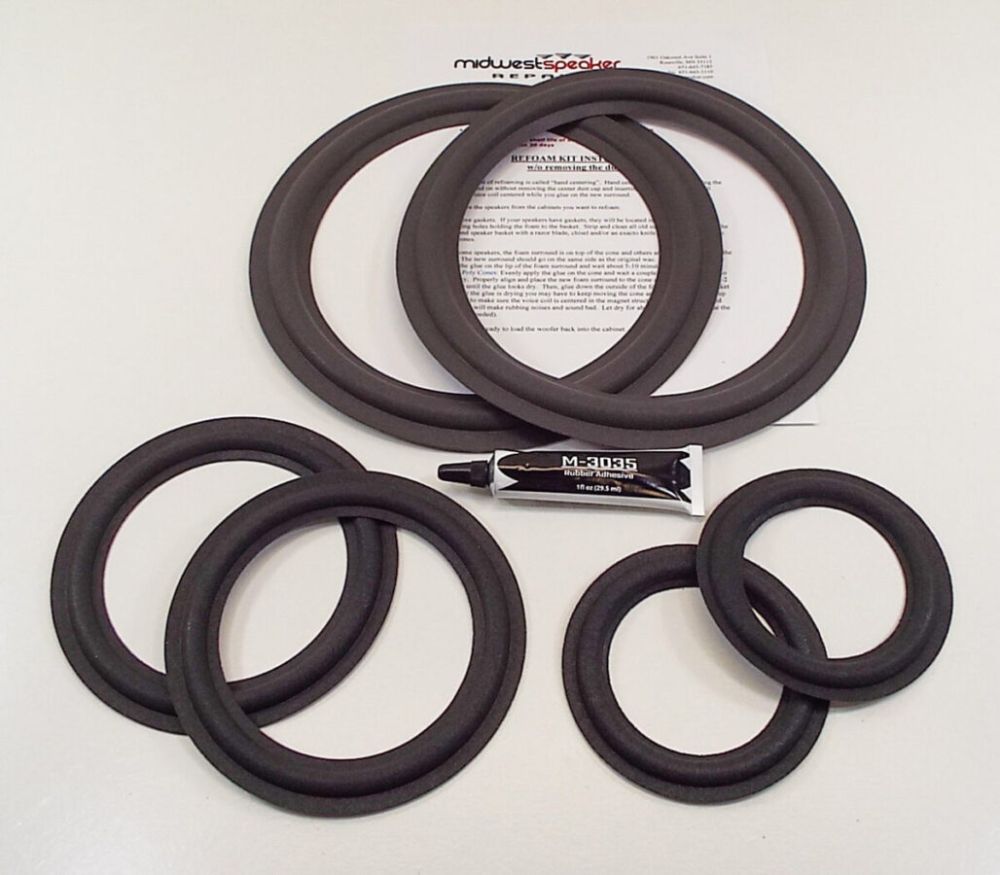

Each Refoam Kit includes all the materials needed to repair two (2) woofers and two (2) mid-bass and two (2) midranges:
– Refoaming Instructions
– Two 10″ Foam Surrounds (F10-5)
– Two 6″ Foam Surrounds (F6-3)
– Two 5″ Foam Surrounds (F4-10)
– 1 Tube of Specially Formulated Foam Surround Adhesive (strong and sticky to bond on the graphite cones)
*These speakers are easy to refoam and to center by hand. If you prefer to shim the voice coil and reuse the poly dust caps, just let us know so we can include shims with your order.
10″ Woofer
A – Outside diameter of the surround = 9.75″
B – Roll ends = 8.875″
C – Roll starts / O.D. of the cone = 7.75″
D – Inside diameter of the surround = 7.125″
6″ Mid- Bass
A – Outside diameter of the surround = 5.95″
B – Roll ends = 5.438″
C – Roll starts / O.D. of the cone = 4.625″
D – Inside diameter of the surround = 4.25″
5″ Midrange
A – Outside diameter of the surround = 4.5″
B – Roll ends = 3.94″
C – Roll starts / O.D. of the cone = 3.19″
D – Inside diameter of the surround = 2.94″
