JBL 4343B Complete Refoam Kit
This kit will fit the JBL 4343B Speaker that use the 2121 10″ mid-bass and the 2231A 15″ woofer.

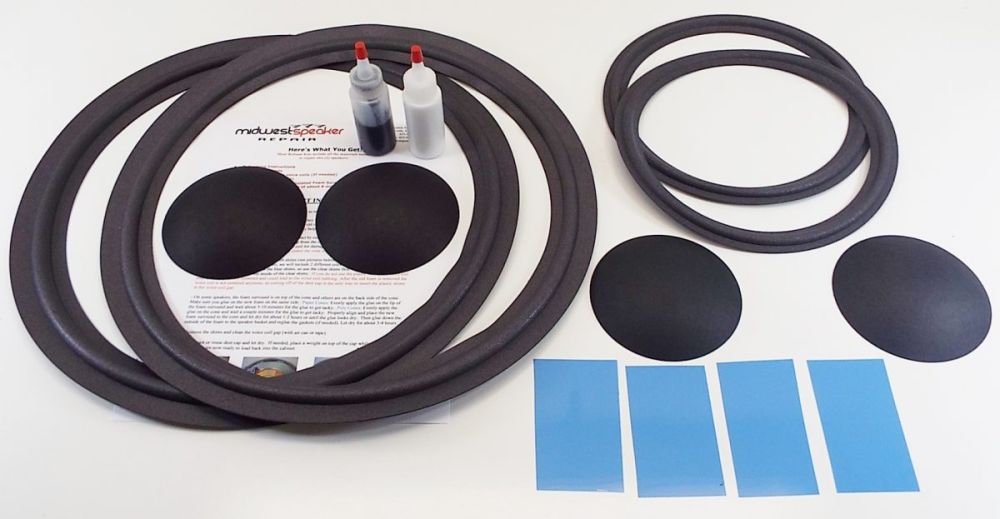

Each Refoam Kit includes all the materials needed to repair two (2) 15″ woofers and two (2) 10″ mids:
– Refoaming Instructions
– Two 15″ Foam Surrounds (F15-6)
– Two 10″ Foam Surrounds (F10-12)
– Shims For Centering the 4″ Voice Coils (woofers)
– Shims For Centering the 3″ Voice Coils (Mids)
– Two 4.4″ Paper Dust Caps (Woofers)
– Two 4.124″ Paper Inverted Dust Caps (Mids)
– 1 Bottle of Specially Formulated Foam Surround Adhesive (Dries Clear)
– 1 Bottle of Black Dust Cap Glue (To retain the original JBL look on the woofer)
*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. JBL woofers have a very tight voice coil gap which leaves little room for error. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing. Also, be careful when cutting off the old dust cap, so you do not cut thru the cone.
15″ Woofer
A – Outside diameter of the surround = 14.75″
B – Roll ends = 13.5″
C – Roll starts / O.D. of the cone = 12.75″
D – Inside diameter of the surround = 12″
10″ Mid-Bass
A – Outside diameter of the surround = 8.625″
B – Roll ends = 8.25″
C – Roll starts / O.D. of the cone = 7.5″
D – Inside diameter of the surround = 7″
