JBL Radiance R103: Complete Refoam Kit (F10-5 & F4-2)

$39.95

This kit will fit the JBL Radiance R103 speakers.

Description
Specifications
Description

JBL Radiance R103 Complete Refoam Kit

This kit will fit the JBL 305G-1 5″ midrange and the 310G-1 10″ woofer.

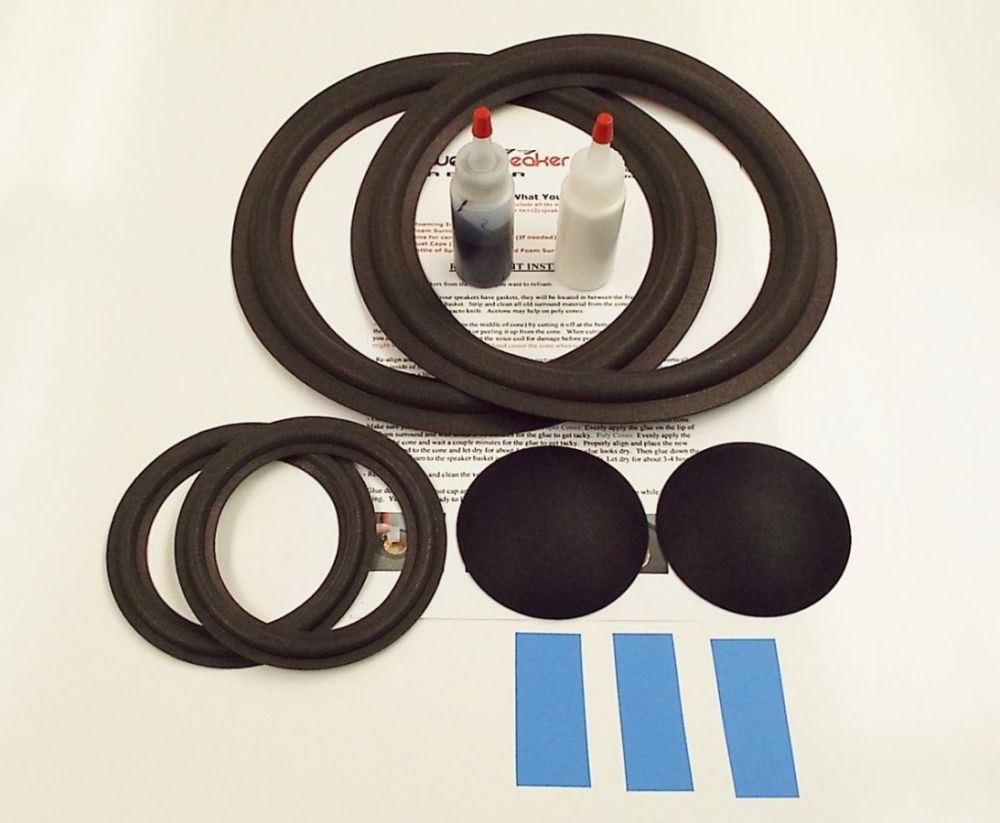

Each Refoam Kit includes all the materials needed to repair two (2) woofers and two (2) midranges:
– Refoaming Instructions
– Two 10″ Foam Surrounds (F10-5)
– Two 5″ Foam Surrounds (F4-2)
– Shims For Centering the 1.5″ Voice Coils on Woofers
– Two 3.2″ Paper Dust Caps for Woofers
– 1 Bottle of Specially Formulated Foam Surround Adhesive (Dries Clear)
– 1 Bottle of Black Dust Cap Glue (To retain the original JBL look)

*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed.  If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing. Also, be careful when cutting off the old dust cap, so you do not cut through the cone.

10″ Woofer
A – Outside diameter of the surround = 9.75″
B – Roll ends                                             = 8.875″
C – Roll starts / O.D. of the cone          = 7.75″
D – Inside diameter of the surround   = 7.125″

5″ Midrange
A – Outside diameter of the surround = 4.5″
B – Roll ends                                             = 4.125″
C – Roll starts / O.D. of the cone          = 3.5″
D – Inside diameter of the surround   = 3.2″

Specifications
Weight .6 lbs
