Kenwood 12″ Refoam Kit
This kit will fit Kenwood 12″ speaker models that have an angled attachment to the cone. Check for correct dimensions.
Model #’s include:
– 9912 and many more.

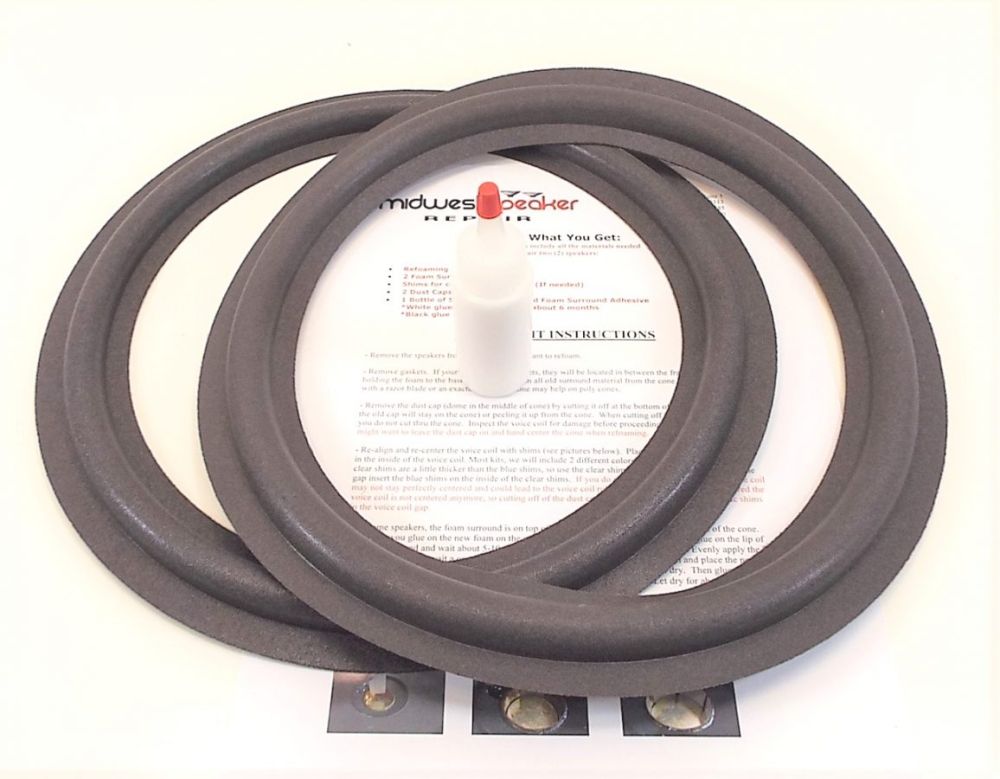

Each Refoam Kit includes all the materials needed to repair two (2) speakers:
– Refoaming Instructions
– 2 Foam Surrounds
– 1 Bottle of Specially Formulated Foam Surround Adhesive
*These woofers have a unique dust cap. We recommend refoaming these woofers without cutting off the dust caps or using shims. The voice coil sits in a fairly large gap and is easy to refoam by hand centering it.
A – Outside diameter of the surround = 11.625″
B – Roll ends = 10.625″
C – Roll starts / O.D. of the cone = 9.25″
D – Inside diameter of the surround = 8.5″
Angled attachment to cone
