Mirage 8″ Refoam Kit
This kit will fit Mirage 8″ woofers from the M-360 speaker and more models.

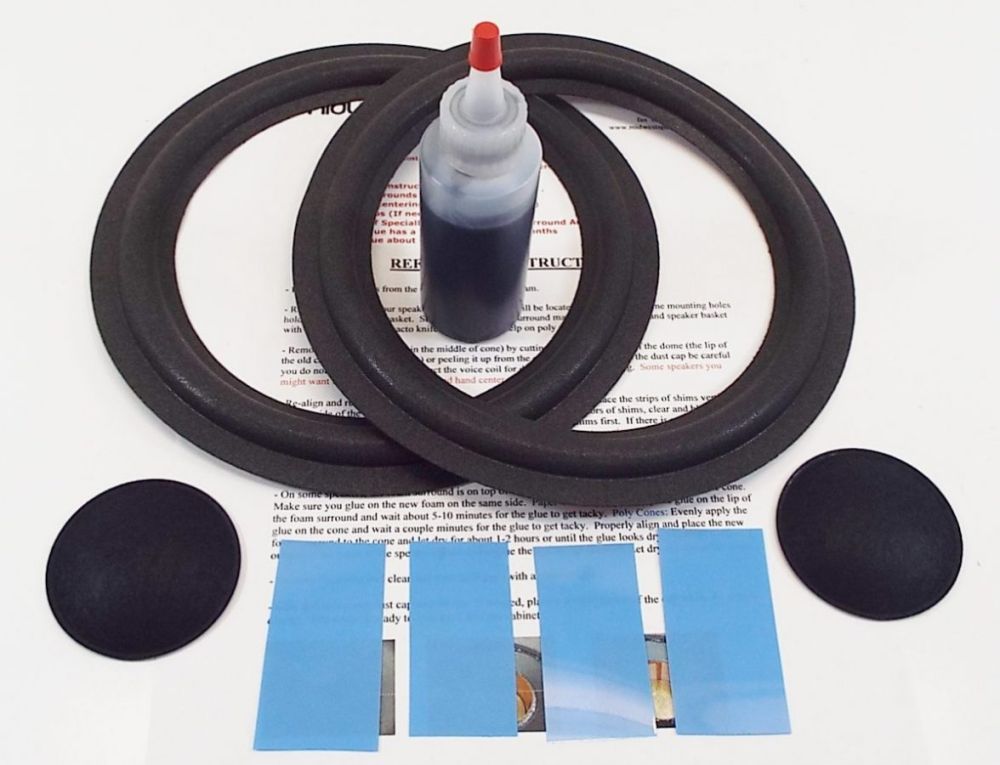

Each Refoam Kit includes all the materials needed to repair two (2) speakers:
– Refoaming Instructions
– 2 Foam Surrounds (F8-2)
– Shims for Centering the 1″ Voice Coils (If Selected)
– Two 2.25″ Screen (thin fabric) Dust Caps (If Selected)
– 1 Bottle of Specially Formulated Poly Cone Black Adhesive (Strong and sticky for excellent bond)
*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims in the voice coil gap. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing.
A – Outside diameter of the surround = 7.75″
B – Roll ends = 6.938″
C – Roll starts / O.D. of the cone = 6″
D – Inside diameter of the surround = 5.5″
Angled attachment to the cone
