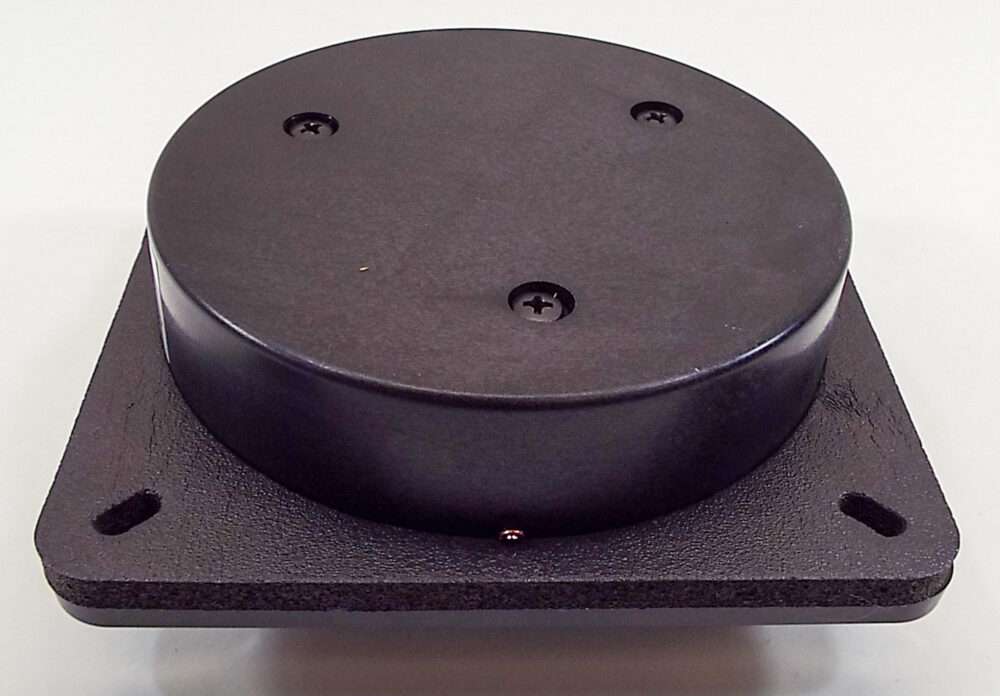

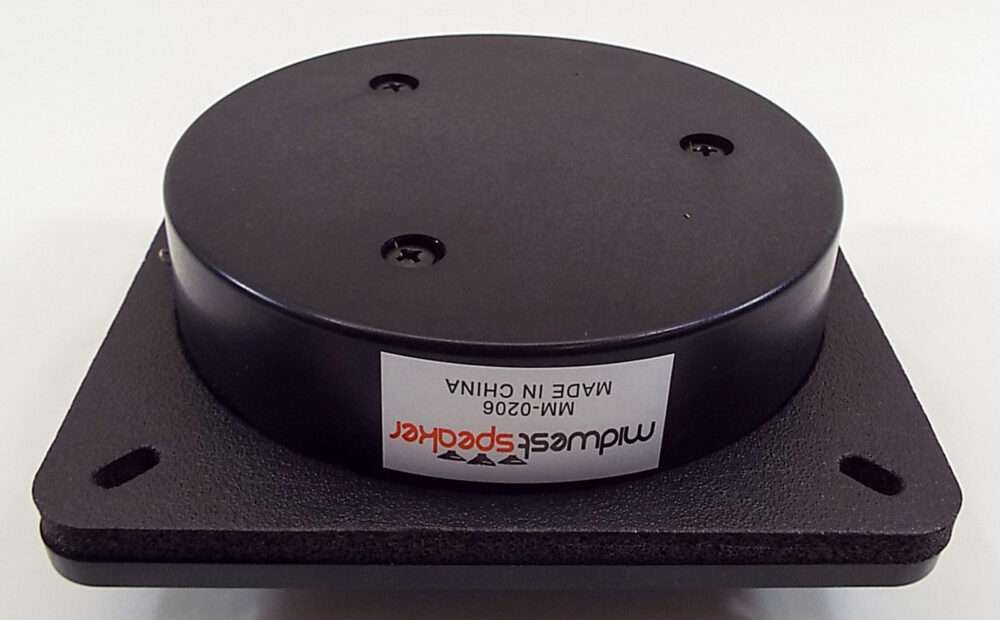

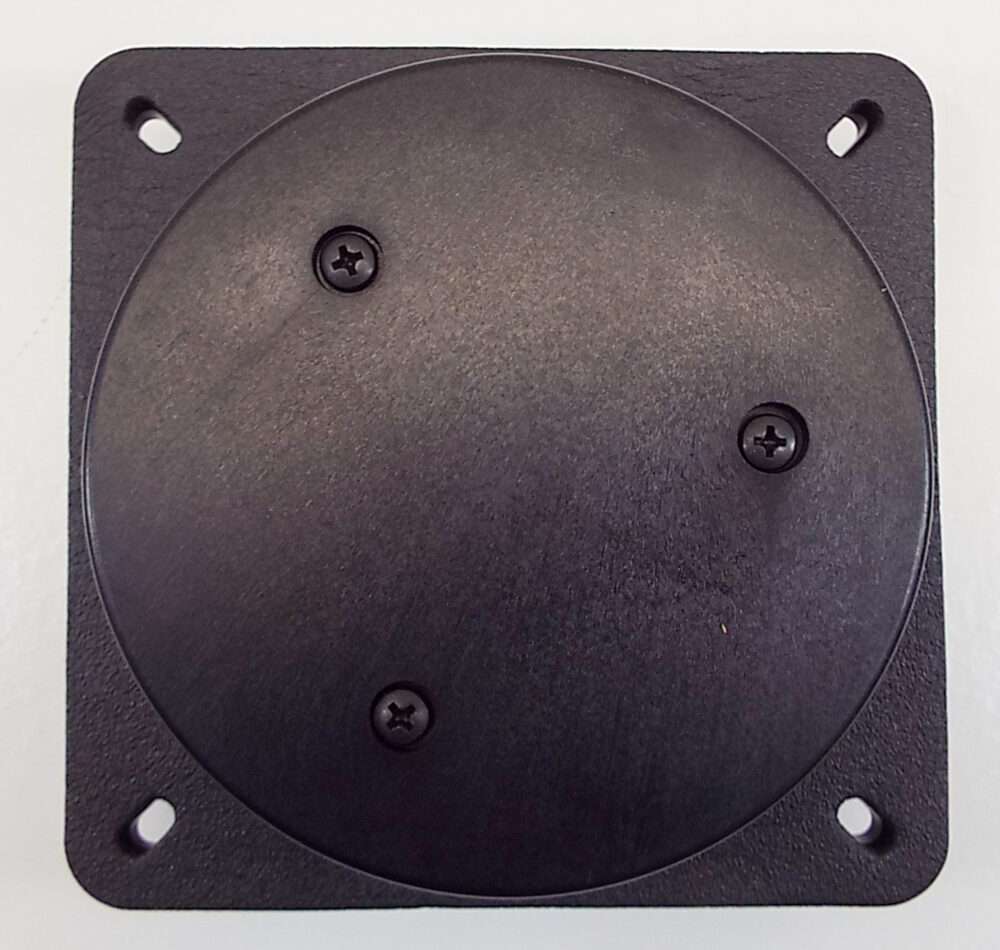

MW Audio MM-0206: Infinity Quantum Series Copy 1.5″ Dome Midrange
Price is for 1 midrange. If you need more than 1, just adjust the quantity.
This is NOT a factory Infinity part as they are not available anymore. It is a great replacement midrange for the Infinity Quantum Line Source speakers. Below is a list of models that the mids will work well in.
The specs and parameters were copied from the original Infinity 902-0206 1.5″ dome midrange to ensure similar sound. Same impedance (8 ohms), face plate and screw holes. Some cabinets you do have to modify the hole just a hair for terminals that come out on the side of the magnet.
Infinity Cabinet Models:
– Quantum Jr, QLS-1, QLS-2, QLS-3, QLS-4, QLS-5, Monitor Jr, Monitor IIA and more.
Specs:
Freq Range: 480-18,000 Hz
Fs: 482 Hz
Power Rating: 60 Watts
Nominal Impedance: 8 ohms
DC Resistance: 7.0 ohms
Sensitivity: 89 dB
Voice Coil Diameter: 1.5″ (37.5mm)
Magnet Weight: 468 g / 16.5 oz
Face Plate Material: ABS
Dome Material: Silk
Surround Material: Silk
Rear Foam Gasket: Yes
Dimensions:
Outside: 5.13″ (130.3mm) Square
Cutout: 4.5″ (114mm)
Mounting Depth: 1.18″ (30mm)
