MW Audio MW-6012: 12″ Paper Cone Woofer
This woofer is a great replacement for the classic big sound for many home audio applications. This woofer has a paper cone with a polyether foam surround and a large ferrite magnet.
Great replacement for DLK 2, 3, 4 woofers. Also fits Altec Lansing Santana II and Model Nine Series 1 woofers! It will NOT fit the Model Nine series II.

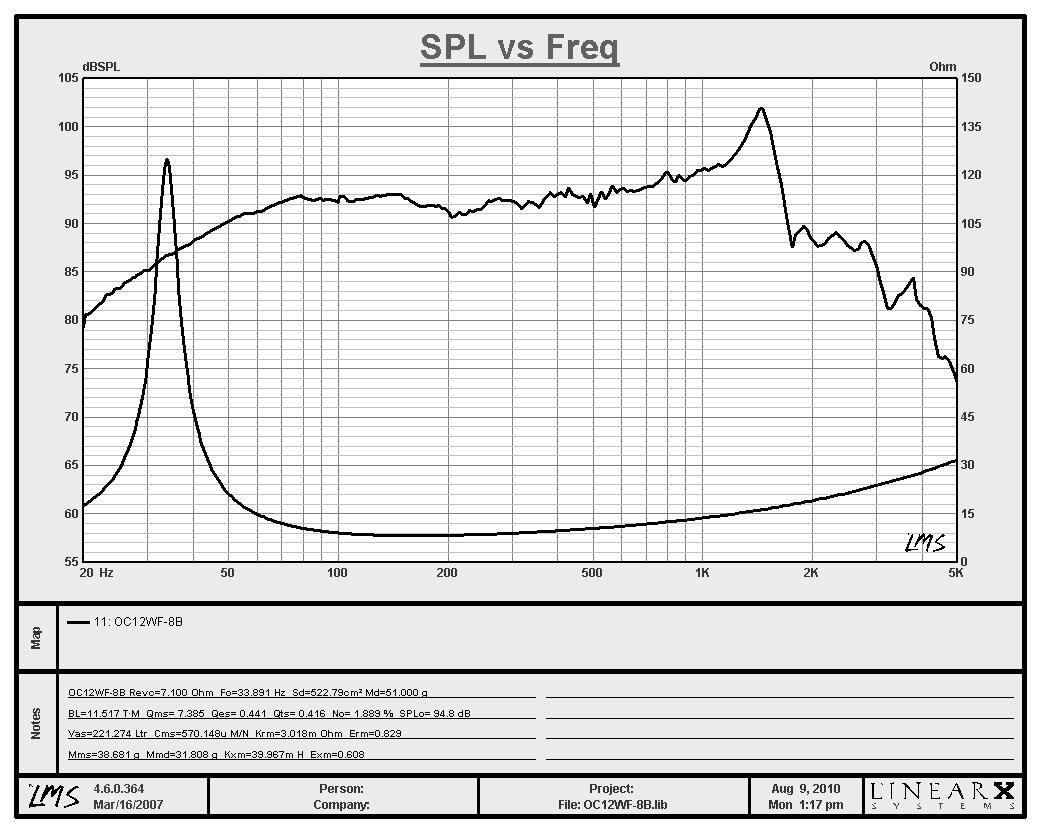

Specifications and Small Signal Parameters:
Voice Coil Impedance: 8 ohm
Voice Coil Diameter: 2″
Voice Coil Former: Kapton
Voice Coil Wire: Copper
Frequency Range: 30- 1500 Hz
Sensitivity: 93 dB SPL (2.83V, 1 meter)
Rated Power: 100 watts
Program Power: 200 watts
Magnet Weight: 38 oz (1079 gr)
Fo: 34 Hz
Re: 7.1 ohm
Qts: 0.42
Qms: 7.4
Qes: .44
Vas: 221.3 liters
Xmax: 5.8 mm
Sd: 523 cm2
Net Weight: 8.41 lbs (3816 g)
Dimensions:
Overall Diameter: 12″ (304.80mm)
Cutout Diameter: 11″ (280mm)
Internal Depth: 5.3″ (135mm)
Magnet Diameter: 5.3″ (135mm)
